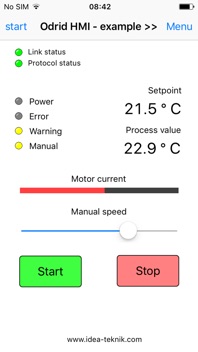

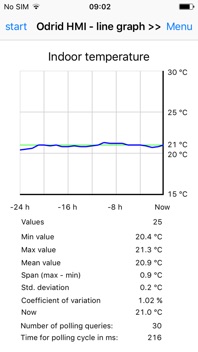

iPhone Screenshots

Screenshot
Screenshot
Screenshot
Screenshot
Screenshot

iPad Screenshots

Screenshot
Screenshot

Beschreibung

Operator panel for various industrial control system. Communication over Wi-Fi or mobile internet with the protocols Modbus/TCP (Class 0 and 1), Modbus RTU class 1 and Siemens S7 Communication (ISO-on-TCP).
Odrid HMI is an alternative to traditional SCADA systems and operator panels. The app supports multiple data types and has easy navigation between panels (pages) using swipe gestures or buttons.

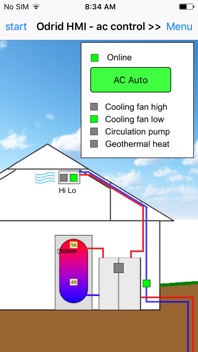

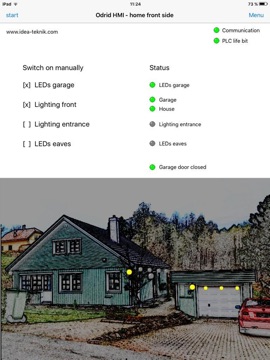

Odrid HMI is also great to use for home automation with PLCs that have e.g. Modbus/TCP protocol is implemented to remotely control and monitor lighting, ventilation, heating etc in the residence or holiday home.
Advantages:
Excellent technical support.
Free updates.
Graphic HMIs with multi touch function can be created in minutes.
Free-of-charge development tool with test run feature.
Virtually unlimited number of panels (pages), objects and variables.
Does not require any third-party services.
Genuine native app.
Features:
Parameters for communication such as IP address, port number, protocol, etc. can be specified per panel (page).
Automatic polling of all variables displayed in the current panel (page), no need for separate tag list.
Many formats for numeric variables such as 16 and 32 bit integer, unsigned, hex, ASCII, float (IEEE 754), etc.
Prioritized event-driven transfer to the controller.
Panels (pages) are edited in the measurement unit dp (Density Independent Pixels).
Life bit for monitoring the operator panel in the controller. (Function similar to coordination area in Siemens S7.)
Numeric variables can be displayed as predefined text for example alarms, sequence steps etc.
Detailed diagnostics of connection and communication.
Variable areas for system variables, local variables and constants.
Possibility of automatic return to the start panel (page) after some time of inactivity.
Selectable order for high and low words of 32-bit variables in the Modbus protocol.
Poll interval can be set do save data traffic or battery.
Support for Baltic, Central European, Chinese (GB2312, BIG5), Cyrillic, Eastern European, Greek, Hebrew, Japanese (Shift JIS), Turkish, Vietnamese and Western character sets.
Ability to test run panels (pages) in the development tool.

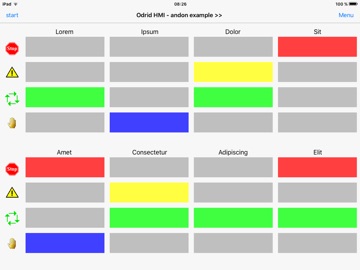

LED-objects can be displayed as rectangles and in any size e.g. for Andon-systems.
Background color for panels (pages) can be selected.
Modbus Device ID can be changed with GUI objects during operation.
Image buttons.
Password fields.
Floating point and hexadecimal number formatting.
Timestamp for panel (page) files.
Hyperlinks.
Document information in panel (page) files.
Implemented protocols in the current version:

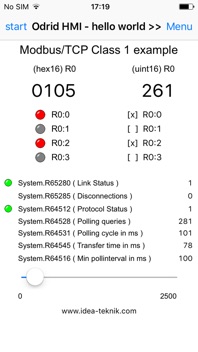

Modbus/TCP: Class 0, Function 3 and 16. Reads and writes 64,512 holding registers.
Modbus/TCP: Class 1, Function 1, 2, 4 and 5. Reads 65,535 discrete inputs, 65,535 input registers and reads and writes 65,535 outputs (coils).
Modbus RTU: Class 0 and 1.
Siemens S7 Communication: Reads and writes 8192 bytes in datablock 1 to 4095 and in the Input, Memory and Output areas.
(Default value for highest Siemens S7 databock is 255.)
Free-of-charge development tool for creating the panels (pages) to be used by Odrid HMI:
https://www.idea-teknik.com/odrid_hmi_download.html
Manual:
https://www.idea-teknik.com/odrid_hmi_manual.html
Version history:
https://www.idea-teknik.com/odrid_hmi_version_history.html
Modbus and Modbus/TCP are registered trademarks of Schneider Automation Inc.
S7 and STEP 7 are trademarks of Siemens AG.

Neue Funktionen von Version 1.7.7

Version 1.7.7
Bug fixes for the Register offset feature In the Modbus protocol drivers.
Version 1.7.6
New feature in the settings "Disconnect on rx timeout" for Modbus RTU.
New system registers for Modbus RTU for enable and online per Device ID.
Bug fixes.

Informationen

Entwickler

Version

1.7.7

Größe

0,9 MB

Game Center

Nein

VPP Device Licensing

Ja

Bewertung

Altersfreigabe: 4+

Kompatibilität

iOS 12.0 oder neuer

Geräte

iPhone 5s, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone SE, iPhone 7, iPhone 7 Plus, iPhone 8, iPhone 8 Plus, iPhone X, iPhone XR, iPhone XS, iPhone XS Max, iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone SE (2. Generation), iPhone 12, iPhone 12 Pro, iPhone 12 Pro Max, iPhone 12 mini, iPhone 13, iPhone 13 Pro, iPhone 13 Pro Max, iPhone 13 mini, iPhone SE (3. Generation), iPhone 14, iPhone 14 Plus, iPhone 14 Pro, iPhone 14 Pro Max, iPhone 15, iPhone 15 Plus, iPhone 15 Pro, iPhone 15 Pro Max, iPad (5. Generation) Wi-Fi, iPad (5. Generation) Wi-Fi + Cellular, iPad (6. Generation) Wi-Fi, iPad (6. Generation) Wi-Fi + Cellular, iPad Pro, iPad Pro (Cellular), iPad Pro (9,7 Zoll), iPad Pro (9,7 Zoll) (Cellular), iPad Pro (12,9", 2. Generation), iPad Pro (12,9", 2. Generation) Wi-Fi + Cellular, iPad Pro (10,5"), iPad Pro (10,5") Wi-Fi + Cellular, iPad Pro (11"), iPad Pro (11") Wi-Fi + Cellular, iPad Pro (12,9", 3. Generation), iPad Pro (12,9", 3. Generation) Wi-Fi + Cellular, iPad Air, iPad Air (Cellular), iPad Air 2, iPad Air 2 (Cellular), iPad Air (3. Generation), iPad Air (3. Generation) Wi-Fi + Cellular, iPad mini Retina, iPad mini Retina (Cellular), iPad mini 3, iPad mini 3 (Cellular), iPad mini 4, iPad mini 4 (Cellular), iPad mini (5. Generation), iPad mini (5. Generation) Wi-Fi + Cellular, iPad (7. Generation) Wi-Fi + Cellular, iPad Pro 11" (2. Generation), iPad Pro 11" (2. Generation) Wi-Fi + Cellular, iPad Pro 12,9" (4. Generation), iPad Pro 12,9" (4. Generation) Wi-Fi + Cellular, iPad Air (4. Generation) (Wi-Fi), iPad Air (4. Generation) (Wi-Fi + Cellular), iPad (8. Generation) Wi-Fi, iPad (8. Generation) Wi-Fi + Cellular, iPad Pro 11" (3. Generation), iPad Pro 11" (3. Generation) Wi-Fi + Cellular, iPad Pro 12,9" (5. Generation), iPad Pro 12,9" (5. Generation) Wi-Fi + Cellular, iPad (9. Generation), iPad (9. Generation) Wi-Fi + Cellular, iPad mini (6. Generation), iPad mini (6. Generation) Wi-Fi + Cellular, iPad Air (5. Generation), iPad Air (5. Generation) Wi-Fi + Cellular, iPad Pro 11" (4. Generation), iPad Pro 11" (4. Generation) Wi-Fi + Cellular, iPad Pro (12,9", 6. Generation), iPad Pro (12,9", 6. Generation) Wi-Fi + Cellular, iPad (10. Generation), iPad (10. Generation) Wi-Fi + Cellular, iPod touch (6. Generation), iPod touch (7. Generation), Mac Desktop

Sprachen

Englisch

App Store: Kundenbewertungen

Alle Versionen

 4,6 (11 Bewertungen)

App Store: Kundenrezensionen

Einfach Klasse

 – 
derRobert85
 – 
2022-06-20
Version 1.5.4
Endlich habe ich diese Software entdeckt.
Somit Ist die Logo! von Siemens endlich zur Haussteuerung geeignet und das ohne einen aufgeblasenen Heimautomatisierungsserver.
Das Erstellen der HMI Oberfläche in der Kostenfrei zur Verfügung gestellten Studiosoftware ist gewöhnungsbedürftig aber nach etwas Einarbeitung und dank der Super Hilfe der Entwickler klappt das dann ganz gut.
Ich bin begeistert. Mit dieser Software konnte ich innerhalb weniger Tage ein lang erträumtes Projekt umsetzen und bin voll zufrieden.
Der Support vom Entwickler ist erstklassig und super schnell.
Eigentlich zu gut und zu schnell für den niedrigen Preis.
Ich glaube man verkauft sich hier unter wert.

easyE4

 – 
Mgg12345778
 – 
2022-04-24
Version 1.4.4
Wir nutzen die App zur Visualisierung einer Eaton easy E4 SPS. Die Kommunikation läuft über TCP/Modbus Class 1.
Das System läuft sehr stabil.
Kleinere Probleme werden durch den Entwickler im direkten Kontakt extrem schnell beantwortet.
Für die App und den Support vergebe ich gern 5 Sterne!

Great App!

 – 
Fuchsflieger
 – 
2022-02-06
Version 1.6.5
Love it! So easy to interact with Siemens Logo and Step7 PLC.
Very good value for money and great support from developer! Thumbs up!

App for Mac OS requires Windos PC?

 – 
cz_2011
 – 
2021-11-06
Version 1.5.6
What's that? I purchase an app for Mac OS and afterwards I have to learn that I need to use another app which is available only for Windows to get the Mac app to work?
Thank you so much!
Not much money wasted but still a good reason to make me angry early in the morning.

Perfekt

 – 
Sindbad-de
 – 
2021-09-11
Version 1.6.1
Ich habe meine Siemens Logo damit verbunden, läuft super.

Achtung

 – 
Nitta89
 – 
2020-07-31
Vorsicht bitte nicht kaufen, das Programm funktioniert nicht
