iPad Screenshots

Beschreibung

FPGAs can dynamically generate logic circuits by means of configuration bit streams generated by languages such as Verilog and VHDL.
The generated logic circuit cannot be changed by communication data.
Therefore, it is very safe and cannot be attacked by hacking, which is a problem with CPUs, to execute arbitrary commands.
In addition, the generated logic circuits are all running simultaneously, so the highest performance parallel processing is being performed.
It can also generate logic circuits using configuration bitstreams at very high speed.
Most of the processing that can be done by the CPU can be done by the FPGA alone.
With advanced security and the highest performace, FPGAs are the perfect device for the modern age.
However, it takes a lot of effort to learn languages such as Verilog and VHDL.
There are other methods such as high-level synthesis from C/C++, but they require a lot of adjustments such as #pragma, and do not maximize the capabilities of the FPGA.
Schematics, not programming languages, are needed to maximize the capabilities of FPGAs and to further improve developer productivity.
Schematics allow you to grasp the whole picture at a glance, and can perfectly represent parallel processing.

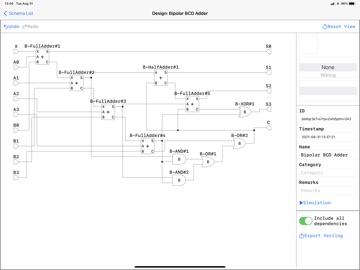

SchemaHD is to draw a circuit diagram of a logic circuit, and it's possible to do generation of Verilog HDL and a simulation.
A made circuit diagram can be used by a different circuit diagram immediately.
You can also install wiring easily by touch operation.

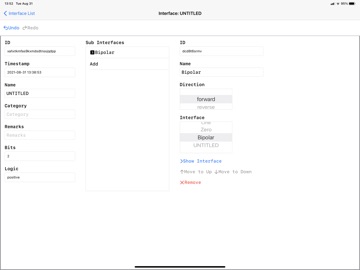

A concept of interface is adopted as a terminal, so something structured of a AXI bus can also be used.
A terminal it's also possible to distinguish sound argument reason, negative logic and characteristic wiring of a clock and a reset by interface, and which is different in interface, they don't seem able to connect, it is.
You can input and output as a JSON file, so the made circuit diagram and interface are also capable of cooperation with other application.
Verilog HDL generated from a circuit diagram contains a comment of a terminal name and an instance name, so it's capable of the correspondence which is at the time of problem occurrence.
A network connection isn't needed, so it's also effective in information leak prevention.

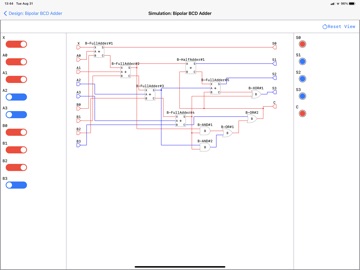

A simple simulation is offered in the present, but it's expected to enhance it early.

Neue Funktionen von Version 1.1.1

Bug fix: Fixed a problem that did not cause an error when the interface of the instance's terminal was changed.
Bug fix: Fixed a problem that caused switches and lamps to be the same as bit types when bipolar types were defined as subinterfaces in simulation.
Bug fix: Fixed a problem in which the icon displayed when tapping the screen in the Combine, Separate operation to paste a part to the schematic was different from the icon of the part selected in the interface picker.
Functionality improvement: To reduce the Combine icon size, the name of the output terminal has been changed to OUT.
Functionality improvement: To reduce the icon size of Separate, the name of the input terminal has been changed to IN.
